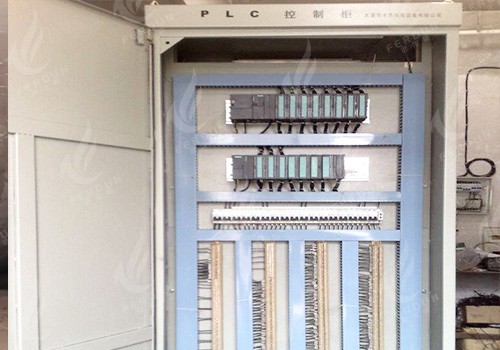

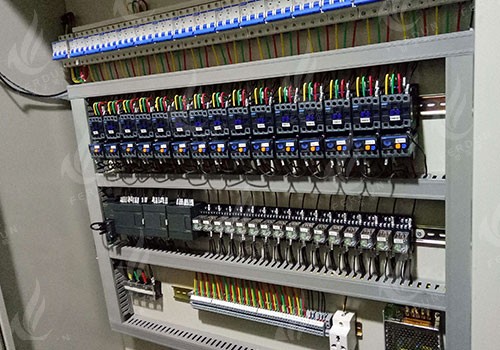

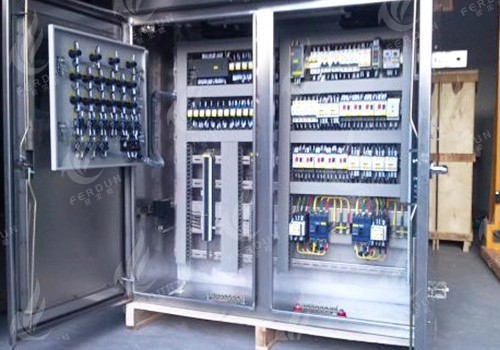

PLC system integrated control cabinet that meets certification requirements
PLC system integrated control cabinet can complete equipment automation and process automation control, realize perfect network functions, have stable performance, scalability, strong anti-interference and other characteristics, and is the core and soul of modern industry. PLC control cabinets, frequency conversion cabinets, etc. can be customized according to user needs to meet user requirements, and can be paired with a human-machine interface touch screen to achieve easy operation.
1. Brief description of functions
PLC system integrated control cabinet can complete equipment automation and process automation control, realize perfect network functions, have stable performance, scalability, strong anti-interference and other characteristics, and is the core and soul of modern industry. PLC control cabinets, frequency conversion cabinets, etc. can be customized according to user needs to meet user requirements, and can be paired with a human-machine interface touch screen to achieve easy operation. The equipment can also transmit data with the DCS bus host computer through modbus, profibus and other communication protocols; control and monitoring can be achieved with industrial computers, Ethernet, etc. This should be selected according to project needs. For example, if the project is small, it can be directly integrated with an integrated PLC. But if the project is relatively large, it may require modules or card types, and it may also require redundancy (that is, two sets are used alternately).
2. General technical parameters of electrical control cabinet (can be customized)
| Manufacturing Standards | ICE 60947-1 CCC EN 61439-1:2011 EN 61439-2:2011 | |
| Quality system standards | GB/T19001-2008 IDT ISO9001:2008 | |
| Electrical control cabinet parameteColorrs |
Rated voltage | 380-420V/500-690V |
| Rated current | 32A-6300A | |
| Maximum substrate capacity | ≥35KA | |
| Cabinet material | Cold rolled steel plate, stainless steel 304 | |
| Cabinet quality system standard dimensions |
Non-standard customized cabinet | |
| Door opening method | Single door & double door customized according to needs | |
| Color | RAL7032/RAL7035/Felton standard color | |
| Protection level | IP30/IP54/IP65 | |
| IK resistance to external mechanical impact | ||
| Steel box | IK10 | |
| Control cabinet with steel plate glass front door | IK08 | |
3. Cabinet structure

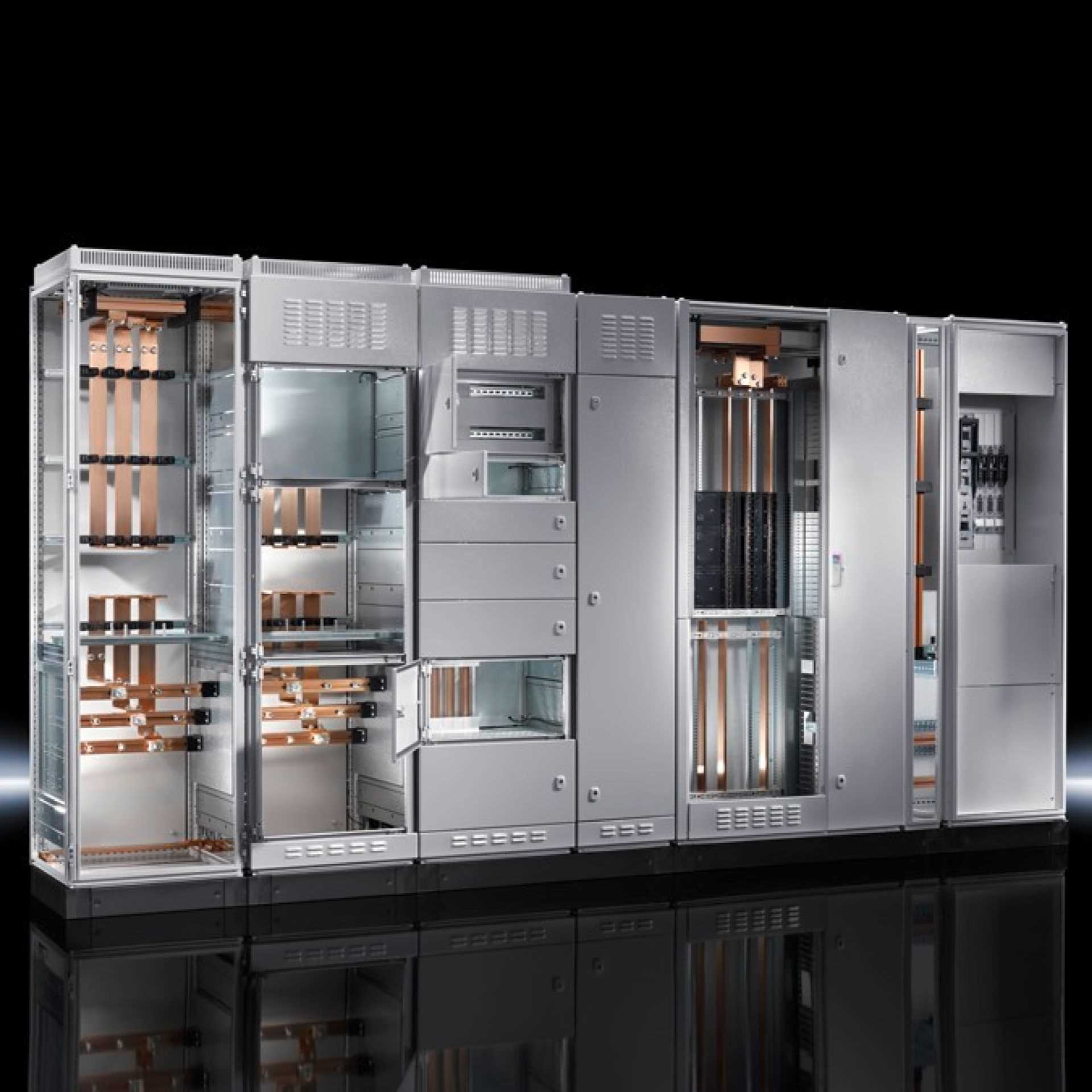

Rittal cabinet, MNS cabinet, GCK cabinet, GGD cabinet, non-standard processing and calibration cabinet.
4. Common component brands
Allen-Bradley, EATON, Phoenix, ABB, Schneider, Siemens, Mitsubishi and many more.
PLC system integrated control cabinet that meets certification requirements PLC system integrated control cabinet can complete equipment automation and process automation control, realize perfect network functions, have stable performance, scalability, strong anti-interference and other characteristics, and is the core and soul of modern industry. PLC control cabinets, frequency conversion cabinets, etc. can be customized according to user needs to meet user requirements, and can be paired with a human-machine interface touch screen to achieve easy operation.
Low-voltage power distribution cabinet that meets certification requirements The function of protecting the instrument is usually installed on site to facilitate the operator to observe and record the data displayed by the instrument. It can perform signal processing on instruments and signal transmission devices and remotely feed back signals to the electronic control system. Instruments, index devices, auxiliary control devices, etc. with various functions are installed to realize the measurement and analysis of objects, record and display of data, and support bus communication.
