A fully automatic pharmaceutical production line that integrates laser printing, detection, and material picking and placing.
Brand：ChancePool
Product Origin：China
Shipping Port：Shanghai
Lead Time：12-16 Weeks
Fully automatic printing inspection production line for pharmaceuticals
The upstream of the production line is connected to a high-speed pharmaceutical filling machine. A simple screening action is performed on overlapping pharmaceuticals at the inlet to ensure that the incoming materials are in a single layer. Based on machine vision, positive and negative detection is realized and the four-axis manipulator is guided to complete the orderly grabbing of materials.
The medicine on the conveying line passes through the laser printer, and a visual inspection system is installed behind the printer to detect and select the size and specifications of the printed fonts. Invalid printed products will be uniformly placed in the defective product silo, and qualified printed products will be The multi-axis motion module grabs and transports it to the downstream leakage detection equipment.
Engineering parameters
| Model | VP |
| Raw material type | pharmaceutical reagents |
| Capacity | 60 pcs/min |
| Yield | 99.99% |
| Dimensions | customizable |
| Power/air source |
AC 100-240V 50/60Hz 0.5-0.6Mpa |
| power | 12kW |
Fully automatic printing inspection production line for pharmaceuticals

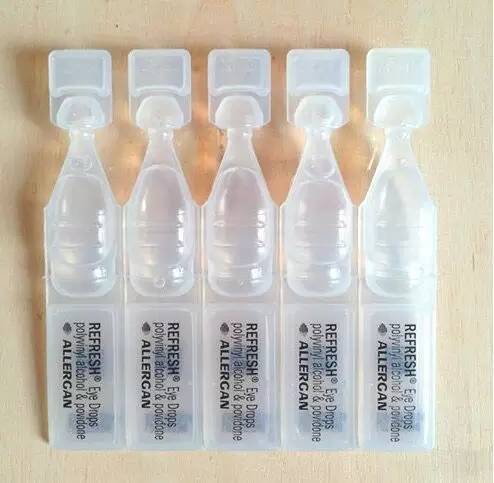

Examples of raw materials
